Comparing The Most Common Materials in HVAC Insulation Applications (Fiberglass vs. Foam vs. Non-Wovens)


Manufacturing Services & Engineering

nsplash

The HVAC market has been around for some time, which means that certain materials are recognized as the best of the best. Among the most common materials are fiberglass and foams, including crushed, open-cell, and closed-cell varieties.

Currently, non-woven materials are trying to find their way into an industry that is dominated by a small number of materials.

In this guide, the HVAC experts at Sur-Seal will take you through the properties and uses of fiberglass, foams, and potential uses for non-woven materials (as well as tips for choosing the right part for any application). You’ll then be able to better understand the market you serve, and maybe even find some new uses for materials that you’re familiar with.

Why is Fiberglass Used for in HVAC Applications?

Fiberglass is one of the most inexpensive and versatile materials in the HVAC industry, and it also has both thermal and acoustic insulating properties.

Fiberglass can be used in HVAC applications with a foil facing, which contains fiberglass loose fibers and prevents them from getting into airflows while also enhancing insulating properties. Fiberglass with a foil facing can also provide acoustical enhancements, as facings work to suppress noises. Micro-perforating the facing will further enhance its acoustic capabilities.

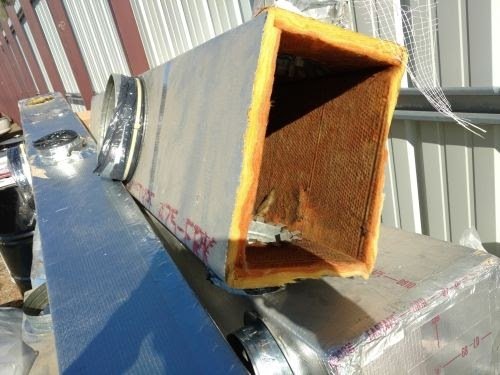

Fiberglass has many uses in the HVAC industry, ranging from unit to home insulation. It can also be used in ductwork, taking the place of sheet metal. These fiberglass ducts look and function like standard metal ducts, but at a lower cost with built-in insulation. There is a downside to using fiberglass such as airborne fibers and for some people it can be a skin irritant.

nsplash

How is Foam Used in HVAC Applications?

There are three types of foam that are prominently used in HVAC applications: crushed, closed-cell, and open-cell foam. Each type serves a different purpose and offers a unique insulation property.

Crushed Foam

Crushed foam is primarily used as a gap-filler in HVAC units. All units have different metal gauges that affect their sturdiness, and a recent industry trend has been to lower gauges as far as they can go without having structural issues as a way of cutting costs. Crushed foam is used in these applications because it fills gaps in surfaces that are inconsistent, and does so without causing deflection in thin metals or plastics.

Closed-Cell Foam

Closed-cell foams, such as Poron and silicone, are higher-end materials that take on a lower compression set than other closed cell foams. This foam type is used in multiple applications, but mainly in unit access doors. Closed-cell foams prevent against leaks and moisture issues, as well as offering a degree of noise insulation. This material type is also used around electrical enclosures.

Open-Cell Foam

Lastly, open-cell foams are used as either environmental filters or acoustic buffers. If the foam has reticulated open pores, it allows air to pass through while catching debris or other harmful materials. This foam type, specifically polyurethane ester and ether, can also be placed between a unit’s metal components to reduce vibration and provide acoustic insulation.

Where Will Non-Woven Materials Be Used in HVAC Applications?

There are very few non-woven materials currently being used in the HVAC industry. However, this doesn’t mean the potential for them to be used is not there.

Many companies that produce non-wovens are trying to break into the HVAC market. For the most part, their products are just now receiving UL testing approvals, so they can be cleared for use. Non-woven materials have the potential to be excellent thermal and acoustic insulators and are much cleaner non-irritant materials.

nsplash

How Do You Choose the Right Insulating Material?

Choosing the right material for your application comes down to two factors: knowing what the product will do and the specifications it must meet.

If you need a material to work in a loud or high-temperature environment, look into ordering a thicker part. The thicker the material is, the greater its thermal and acoustic insulation properties, which applies to both fiberglass and foams.

The density of an insulation material will also affect performance and contribute to your selection process. It’s important to note that a material’s density is a “trickle-down scale,” which means that increases in density are not linear. This has to do with the material’s air pockets and finding the right size for ideal thermal and acoustic insulation. If a material’s density increases, it will eventually reach maximum density, and there will be nothing left to compress, altering the insulation ability of the material.

For specifications, HVAC materials are heavily driven by UL flammability ratings. Residential, commercial, rooftop, and interior unit types all have different ratings that the materials need to meet. According to UL standards, there is a certain percentage of materials that need to be UL-rated based on the unit’s size. Understanding both the standards you need to meet (and the percentage of materials that you need to meet them) is crucial for creating a great product.

Why Does Understanding These Different Materials Matter?

The HVAC industry covers a wide variety of applications and products but features a small number of materials. By gaining a greater understanding of those materials, such as fiberglass, foams, and non-wovens, you can be more knowledgeable about the market and clients you serve.

Learning the properties and functions of materials (such as fiberglass, crushed foam, open-cell foam, and closed-cell foam), as well as how they relate to one another, is crucial for crafting the best HVAC products possible. Likewise, knowing how to choose not only the right material, but the right material thickness, density, and standards, will lead to better units.

Combine the key factors discussed in this guide with your own industry expertise to make the right material decision for any customer application.
